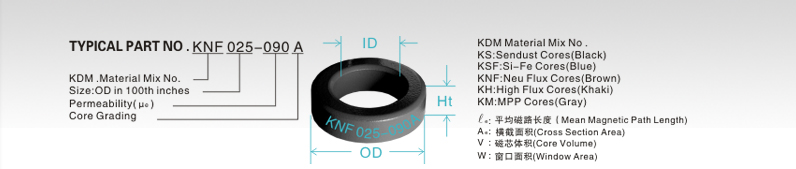

リング状コア規格

KDM PartNo.	Before Coating (mm)			After coating(mm)			Ae(cm2)	le(cm)	V(cm3)	W(cm2)	Perm.[μ]	AL (nH/N2)	Download
	OD	ID	HT	OD	ID	HT
	Max.	Min.	Max.	Max.	Min.	Max.
KNF025-026A	6.35	2.79	2.79	6.99	2.29	3.43	0.047	1.361	0.064	0.041	26	10
KNF025-040A	6.35	2.79	2.79	6.99	2.29	3.43	0.047	1.361	0.064	0.041	40	16
KNF025-060A	6.35	2.79	2.79	6.99	2.29	3.43	0.047	1.361	0.064	0.041	60	24
KNF025-075A	6.35	2.79	2.79	6.99	2.29	3.43	0.047	1.361	0.064	0.041	75	30
KNF025-090A	6.35	2.79	2.79	6.99	2.29	3.43	0.047	1.361	0.064	0.041	90	36
KNF027-026A	6.60	2.67	2.54	7.24	2.16	3.18	0.047	1.363	0.064	0.041	26	11
KNF027-040A	6.60	2.67	2.54	7.24	2.16	3.18	0.047	1.363	0.064	0.041	40	17
KNF027-060A	6.60	2.67	2.54	7.24	2.16	3.18	0.047	1.363	0.064	0.041	60	26
KNF027-075A	6.60	2.67	2.54	7.24	2.16	3.18	0.047	1.363	0.064	0.041	75	32
KNF027-090A	6.60	2.67	2.54	7.24	2.16	3.18	0.047	1.363	0.064	0.041	90	39
KNF026-026A	6.60	2.67	4.78	7.24	2.16	5.54	0.092	1.363	0.125	0.038	26	21
KNF026-040A	6.60	2.67	4.78	7.24	2.16	5.54	0.092	1.363	0.125	0.038	40	33
KNF026-060A	6.60	2.67	4.78	7.24	2.16	5.54	0.092	1.363	0.125	0.038	60	50
KNF026-075A	6.60	2.67	4.78	7.24	2.16	5.54	0.092	1.363	0.125	0.038	75	62
KNF026-090A	6.60	2.67	4.78	7.24	2.16	5.54	0.092	1.363	0.125	0.038	90	74
KNF031-026A	7.87	3.96	3.18	8.51	3.43	3.81	0.061	0.061	0.061	0.061	26	11
KNF031-040A	7.87	3.96	3.18	8.51	3.43	3.81	0.061	0.061	0.061	0.061	40	17
KNF031-060A	7.87	3.96	3.18	8.51	3.43	3.81	0.061	0.061	0.061	0.061	60	25
KNF031-075A	7.87	3.96	3.18	8.51	3.43	3.81	0.061	0.061	0.061	0.061	75	31
KNF031-090A	7.87	3.96	3.18	8.51	3.43	3.81	0.061	0.061	0.061	0.061	90	37
KNF039-026A	9.65	4.78	3.18	10.29	4.27	3.81	0.075	2.18	0.163	0.1442	26	11
KNF039-040A	9.65	4.78	3.18	10.29	4.27	3.81	0.075	2.18	0.163	0.1442	40	17
KNF039-060A	9.65	4.78	3.18	10.29	4.27	3.81	0.075	2.18	0.163	0.1442	60	25
KNF039-075A	9.65	4.78	3.18	10.29	4.27	3.81	0.075	2.18	0.163	0.1442	75	32
KNF039-090A	9.65	4.78	3.18	10.29	4.27	3.81	0.075	2.18	0.163	0.1442	90	38
KNF038-026A	9.65	4.78	3.96	10.29	4.27	4.60	0.094	2.18	0.206	0.142	26	14
KNF038-040A	9.65	4.78	3.96	10.29	4.27	4.60	0.094	2.18	0.206	0.142	40	21
KNF038-060A	9.65	4.78	3.96	10.29	4.27	4.60	0.094	2.18	0.206	0.142	60	32
KNF038-075A	9.65	4.78	3.96	10.29	4.27	4.60	0.094	2.18	0.206	0.142	75	40
KNF038-090A	9.65	4.78	3.96	10.29	4.27	4.60	0.094	2.18	0.206	0.142	90	48
KNF040-026A	10.20	5.08	3.96	10.80	4.57	4.60	0.1	2.38	0.238	0.164	26	14
KNF040-040A	10.20	5.08	3.96	10.80	4.57	4.60	0.1	2.38	0.238	0.164	40	21
KNF040-060A	10.20	5.08	3.96	10.80	4.57	4.60	0.1	2.38	0.238	0.164	60	32
KNF040-075A	10.20	5.08	3.96	10.80	4.57	4.60	0.1	2.38	0.238	0.164	75	40
KNF040-090A	10.20	5.08	3.96	10.80	4.57	4.60	0.1	2.38	0.238	0.164	90	48
KNF044-026A	11.20	6.35	3.96	11.89	5.89	4.72	0.09	2.69	0.243	0.273	26	11
KNF044-040A	11.20	6.35	3.96	11.89	5.89	4.72	0.09	2.69	0.243	0.273	40	17
KNF044-060A	11.20	6.35	3.96	11.89	5.89	4.72	0.09	2.69	0.243	0.273	60	26
KNF044-075A	11.20	6.35	3.96	11.89	5.89	4.72	0.09	2.69	0.243	0.273	75	32
KNF044-090A	11.20	6.35	3.96	11.89	5.89	4.72	0.09	2.69	0.243	0.273	90	38
KNF050-026A	12.70	7.62	4.75	13.46	6.99	5.51	0.114	3.12	0.356	0.383	26	12
KNF050-040A	12.70	7.62	4.75	13.46	6.99	5.51	0.114	3.12	0.356	0.383	40	18
KNF050-060A	12.70	7.62	4.75	13.46	6.99	5.51	0.114	3.12	0.356	0.383	60	27
KNF050-075A	12.70	7.62	4.75	13.46	6.99	5.51	0.114	3.12	0.356	0.383	75	34
KNF050-090A	12.70	7.62	4.75	13.46	6.99	5.51	0.114	3.12	0.356	0.383	90	40
KNF065-026A	16.50	10.20	6.35	17.40	9.53	7.11	0.192	4.11	0.789	0.713	26	15
KNF065-040A	16.50	10.20	6.35	17.40	9.53	7.11	0.192	4.11	0.789	0.713	40	23
KNF065-060A	16.50	10.20	6.35	17.40	9.53	7.11	0.192	4.11	0.789	0.713	60	35
KNF065-075A	16.50	10.20	6.35	17.40	9.53	7.11	0.192	4.11	0.789	0.713	75	43
KNF065-090A	16.50	10.20	6.35	17.40	9.53	7.11	0.192	4.11	0.789	0.713	90	52
KNF068-026A	17.30	9.65	6.35	18.03	9.02	7.11	0.232	4.14	0.96	0.638	26	19
KNF068-040A	17.30	9.65	6.35	18.03	9.02	7.11	0.232	4.14	0.96	0.638	40	29
KNF068-060A	17.30	9.65	6.35	18.03	9.02	7.11	0.232	4.14	0.96	0.638	60	43
KNF068-075A	17.30	9.65	6.35	18.03	9.02	7.11	0.232	4.14	0.96	0.638	75	53
KNF068-090A	17.30	9.65	6.35	18.03	9.02	7.11	0.232	4.14	0.96	0.638	90	64
KNF080-026A	20.30	12.70	6.35	21.10	12.07	7.11	0.226	5.09	1.15	1.14	26	14
KNF080-040A	20.30	12.70	6.35	21.10	12.07	7.11	0.226	5.09	1.15	1.14	40	21
KNF080-060A	20.30	12.70	6.35	21.10	12.07	7.11	0.226	5.09	1.15	1.14	60	32
KNF080-075A	20.30	12.70	6.35	21.10	12.07	7.11	0.226	5.09	1.15	1.14	75	41
KNF080-090A	20.30	12.70	6.35	21.10	12.07	7.11	0.226	5.09	1.15	1.14	90	49
KNF090-026A	22.90	14.70	7.62	23.62	13.39	8.38	0.331	5.67	1.88	1.41	26	19
KNF090-040A	22.90	14.70	7.62	23.62	13.39	8.38	0.331	5.67	1.88	1.41	40	29
KNF090-060A	22.90	14.70	7.62	23.62	13.39	8.38	0.331	5.67	1.88	1.41	60	43
KNF090-075A	22.90	14.70	7.62	23.62	13.39	8.38	0.331	5.67	1.88	1.41	75	54
KNF090-090A	22.90	14.70	7.62	23.62	13.39	8.38	0.331	5.67	1.88	1.41	90	65
KNF092-026A	23.60	14.40	8.89	24.30	13.77	9.70	0.388	5.88	2.28	1.49	26	22
KNF092-040A	23.60	14.40	8.89	24.30	13.77	9.70	0.388	5.88	2.28	1.49	40	34
KNF092-060A	23.60	14.40	8.89	24.30	13.77	9.70	0.388	5.88	2.28	1.49	60	51
KNF092-075A	23.60	14.40	8.89	24.30	13.77	9.70	0.388	5.88	2.28	1.49	75	63
KNF092-090A	23.60	14.40	8.89	24.30	13.77	9.70	0.388	5.88	2.28	1.49	90	76
KNF107-026A	26.90	14.70	8.64	27.70	14.10	9.45	0.497	6.352	3.155	1.56	26	22
KNF107-040A	26.90	14.70	8.64	27.70	14.10	9.45	0.497	6.352	3.155	1.56	40	39
KNF107-060A	26.90	14.70	8.64	27.70	14.10	9.45	0.497	6.352	3.155	1.56	60	59
KNF107-075A	26.90	14.70	8.64	27.70	14.10	9.45	0.497	6.352	3.155	1.56	75	74
KNF107-090A	26.90	14.70	8.64	27.70	14.10	9.45	0.497	6.352	3.155	1.56	90	89
KNF090-026A-E14	22.90	15.00	14.00	23.62	13.39	15.00	0.608	5.67	3.454	1.41	26	35
KNF090-040A-E14	22.90	15.00	14.00	23.62	13.39	15.00	0.608	5.67	3.454	1.41	40	53
KNF090-060A-E14	22.90	15.00	14.00	23.62	13.39	15.00	0.608	5.67	3.454	1.41	60	79
KNF090-075A-E14	22.90	15.00	14.00	23.62	13.39	15.00	0.608	5.67	3.454	1.41	75	99
KNF090-090A-E14	22.90	15.00	14.00	23.62	13.39	15.00	0.608	5.67	3.454	1.41	90	119
KNF092-026A-E14	23.60	15.00	14.00	24.30	13.77	15.00	0.611	5.88	3.591	1.49	26	35
KNF092-040A-E14	23.60	15.00	14.00	24.30	13.77	15.00	0.611	5.88	3.591	1.49	40	53
KNF092-060A-E14	23.60	15.00	14.00	24.30	13.77	15.00	0.611	5.88	3.591	1.49	60	80
KNF092-075A-E14	23.60	15.00	14.00	24.30	13.77	15.00	0.611	5.88	3.591	1.49	75	99
KNF092-090A-E14	23.60	15.00	14.00	24.30	13.77	15.00	0.611	5.88	3.591	1.49	90	120
KNF106-026A	26.90	14.70	11.20	27.70	14.10	11.99	0.654	6.35	4.15	1.56	26	32
KNF106-040A	26.90	14.70	11.20	27.70	14.10	11.99	0.654	6.35	4.15	1.56	40	50
KNF106-060A	26.90	14.70	11.20	27.70	14.10	11.99	0.654	6.35	4.15	1.56	60	75
KNF106-075A	26.90	14.70	11.20	27.70	14.10	11.99	0.654	6.35	4.15	1.56	75	94
KNF106-090A	26.90	14.70	11.20	27.70	14.10	11.99	0.654	6.35	4.15	1.56	90	113
KNF092-026A-E18	23.60	14.40	18.00	24.30	13.77	19.00	0.786	5.88	4.616	1.49	26	45
KNF092-040A-E18	23.60	14.40	18.00	24.30	13.77	19.00	0.786	5.88	4.616	1.49	40	69
KNF092-060A-E18	23.60	14.40	18.00	24.30	13.77	19.00	0.786	5.88	4.616	1.49	60	103
KNF092-075A-E18	23.60	14.40	18.00	24.30	13.77	19.00	0.786	5.88	4.616	1.49	75	128
KNF092-090A-E18	23.60	14.40	18.00	24.30	13.77	19.00	0.786	5.88	4.616	1.49	90	154
KNF106-026A-E14	26.90	14.70	14.00	27.70	14.10	15.00	0.818	6.35	5.194	1.56	26	40.02446483
KNF106-040A-E14	26.90	14.70	14.00	27.70	14.10	15.00	0.818	6.35	5.194	1.56	40	62
KNF106-060A-E14	26.90	14.70	14.00	27.70	14.10	15.00	0.818	6.35	5.194	1.56	60	94
KNF106-075A-E14	26.90	14.70	14.00	27.70	14.10	15.00	0.818	6.35	5.194	1.56	75	118
KNF106-090A-E14	26.90	14.70	14.00	27.70	14.10	15.00	0.818	6.35	5.194	1.56	90	141
KNF106-026A-E18	26.90	14.70	18.00	27.70	14.10	19.00	1.051	6.35	6.67	1.56	26	51
KNF106-040A-E18	26.90	14.70	18.00	27.70	14.10	19.00	1.051	6.35	6.67	1.56	40	80
KNF106-060A-E18	26.90	14.70	18.00	27.70	14.10	19.00	1.051	6.35	6.67	1.56	60	120
KNF106-075A-E18	26.90	14.70	18.00	27.70	14.10	19.00	1.051	6.35	6.67	1.56	75	151
KNF106-090A-E18	26.90	14.70	18.00	27.70	14.10	19.00	1.051	6.35	6.67	1.56	90	181
KNF131-026A	33.00	19.90	8.76	33.83	19.30	9.70	0.551	8.147	4.49	2.93	26	22
KNF131-040A	33.00	19.90	8.76	33.83	19.30	9.70	0.551	8.147	4.49	2.93	40	34
KNF131-060A	33.00	19.90	8.76	33.83	19.30	9.70	0.551	8.147	4.49	2.93	60	51
KNF131-075A	33.00	19.90	8.76	33.83	19.30	9.70	0.551	8.147	4.49	2.93	75	64
KNF131-090A	33.00	19.90	8.76	33.83	19.30	9.70	0.551	8.147	4.49	2.93	90	76.5
KNF135-026A	34.30	23.40	8.89	35.10	22.56	9.83	0.454	8.95	4.06	4.01	26	16
KNF135-040A	34.30	23.40	8.89	35.10	22.56	9.83	0.454	8.95	4.06	4.01	40	25
KNF135-060A	34.30	23.40	8.89	35.10	22.56	9.83	0.454	8.95	4.06	4.01	60	38
KNF135-075A	34.30	23.40	8.89	35.10	22.56	9.83	0.454	8.95	4.06	4.01	75	47
KNF135-090A	34.30	23.40	8.89	35.10	22.56	9.83	0.454	8.95	4.06	4.01	90	57
KNF130-026A	33.00	19.90	10.70	33.83	19.30	11.61	0.672	8.15	5.48	2.93	26	28
KNF130-040A	33.00	19.90	10.70	33.83	19.30	11.61	0.672	8.15	5.48	2.93	40	41
KNF130-060A	33.00	19.90	10.70	33.83	19.30	11.61	0.672	8.15	5.48	2.93	60	61
KNF130-075A	33.00	19.90	10.70	33.83	19.30	11.61	0.672	8.15	5.48	2.93	75	76
KNF130-090A	33.00	19.90	10.70	33.83	19.30	11.61	0.672	8.15	5.48	2.93	90	91
KNF132-026A	33.00	19.90	11.18	33.83	19.30	11.99	0.698	8.147	5.687	2.93	26	28
KNF132-040A	33.00	19.90	11.18	33.83	19.30	11.99	0.698	8.147	5.687	2.93	40	43
KNF132-060A	33.00	19.90	11.18	33.83	19.30	11.99	0.698	8.147	5.687	2.93	60	65
KNF132-075A	33.00	19.90	11.18	33.83	19.30	11.99	0.698	8.147	5.687	2.93	75	81
KNF132-090A	33.00	19.90	11.18	33.83	19.30	11.99	0.698	8.147	5.687	2.93	90	97
KNF141-026A	35.80	22.40	10.50	36.63	21.54	11.28	0.678	8.98	6.088	3.64	26	24
KNF141-040A	35.80	22.40	10.50	36.63	21.54	11.28	0.678	8.98	6.088	3.64	40	37
KNF141-060A	35.80	22.40	10.50	36.63	21.54	11.28	0.678	8.98	6.088	3.64	60	56
KNF141-075A	35.80	22.40	10.50	36.63	21.54	11.28	0.678	8.98	6.088	3.64	75	70
KNF141-090A	35.80	22.40	10.50	36.63	21.54	11.28	0.678	8.98	6.088	3.64	90	84
KNF130-026A-E14	33.00	19.90	14.00	33.83	19.30	15.00	0.879	8.15	7.17	2.93	26	37
KNF130-040A-E14	33.00	19.90	14.00	33.83	19.30	15.00	0.879	8.15	7.17	2.93	40	54
KNF130-060A-E14	33.00	19.90	14.00	33.83	19.30	15.00	0.879	8.15	7.17	2.93	60	80
KNF130-075A-E14	33.00	19.90	14.00	33.83	19.30	15.00	0.879	8.15	7.17	2.93	75	99
KNF130-090A-E14	33.00	19.90	14.00	33.83	19.30	15.00	0.879	8.15	7.17	2.93	90	119
KNF130-026A-E18	33.00	19.90	18.00	33.83	19.30	19.00	1.13	8.15	9.219	2.93	26	47
KNF130-040A-E18	33.00	19.90	18.00	33.83	19.30	19.00	1.13	8.15	9.219	2.93	40	69
KNF130-060A-E18	33.00	19.90	18.00	33.83	19.30	19.00	1.13	8.15	9.219	2.93	60	103
KNF130-075A-E18	33.00	19.90	18.00	33.83	19.30	19.00	1.13	8.15	9.219	2.93	75	128
KNF130-090A-E18	33.00	19.90	18.00	33.83	19.30	19.00	1.13	8.15	9.219	2.93	90	153
KNF157-026A	39.90	24.10	14.50	40.72	23.30	15.37	1.072	9.84	10.5	4.27	26	35
KNF157-040A	39.90	24.10	14.50	40.72	23.30	15.37	1.072	9.84	10.5	4.27	40	54
KNF157-060A	39.90	24.10	14.50	40.72	23.30	15.37	1.072	9.84	10.5	4.27	60	81
KNF157-075A	39.90	24.10	14.50	40.72	23.30	15.37	1.072	9.84	10.5	4.27	75	101
KNF157-090A	39.90	24.10	14.50	40.72	23.30	15.37	1.072	9.84	10.5	4.27	90	121
KNF168-026A	42.90	24.20	16.26	44.00	23.30	17.16	1.475	10.216	15.741	3.644	26	47
KNF168-040A	42.90	24.20	16.26	44.00	23.30	17.16	1.475	10.216	15.741	3.644	40	72
KNF168-060A	42.90	24.20	16.26	44.00	23.30	17.16	1.475	10.216	15.741	3.644	60	108
KNF168-075A	42.90	24.20	16.26	44.00	23.30	17.16	1.475	10.216	15.741	3.644	75	135
KNF168-090A	42.90	24.20	16.26	44.00	23.30	17.16	1.475	10.216	15.741	3.644	90	161
KNF158-026A	40.13	22.08	17.00	40.94	21.27	17.89	1.537	9.51	15.043	3.551	26	53
KNF158-040A	40.13	22.08	17.00	40.94	21.27	17.89	1.537	9.51	15.043	3.551	40	81
KNF158-060A	40.13	22.08	17.00	40.94	21.27	17.89	1.537	9.51	15.043	3.551	60	122
KNF158-075A	40.13	22.08	17.00	40.94	21.27	17.89	1.537	9.51	15.043	3.551	75	152
KNF158-090A	40.13	22.08	17.00	40.94	21.27	17.89	1.537	9.51	15.043	3.551	90	183
KNF184-026A	46.70	24.10	18.00	47.63	23.32	18.92	1.99	10.74	21.3	4.27	26	59
KNF184-040A	46.70	24.10	18.00	47.63	23.32	18.92	1.99	10.74	21.3	4.27	40	90
KNF184-060A	46.70	24.10	18.00	47.63	23.32	18.92	1.99	10.74	21.3	4.27	60	135
KNF184-075A	46.70	24.10	18.00	47.63	23.32	18.92	1.99	10.74	21.3	4.27	75	169
KNF184-090A	46.70	24.10	18.00	47.63	23.32	18.92	1.99	10.74	21.3	4.27	90	202
KNF185-026A	46.70	28.70	15.20	47.63	27.89	16.13	1.34	11.63	15.53	6.11	26	37
KNF185-040A	46.70	28.70	15.20	47.63	27.89	16.13	1.34	11.63	15.53	6.11	40	57
KNF185-060A	46.70	28.70	15.20	47.63	27.89	16.13	1.34	11.63	15.53	6.11	60	86
KNF185-075A	46.70	28.70	15.20	47.63	27.89	16.13	1.34	11.63	15.53	6.11	75	107
KNF185-090A	46.70	28.70	15.20	47.63	27.89	16.13	1.34	11.63	15.53	6.11	90	128
KNF200-026A	50.80	31.80	13.50	51.69	30.94	14.35	1.251	12.73	15.93	7.5	26	32
KNF200-040A	50.80	31.80	13.50	51.69	30.94	14.35	1.251	12.73	15.93	7.5	40	49
KNF200-060A	50.80	31.80	13.50	51.69	30.94	14.35	1.251	12.73	15.93	7.5	60	73
KNF200-075A	50.80	31.80	13.50	51.69	30.94	14.35	1.251	12.73	15.93	7.5	75	91
KNF200-090A	50.80	31.80	13.50	51.69	30.94	14.35	1.251	12.73	15.93	7.5	90	109
KNF226-026A	57.20	26.40	15.20	58.00	25.60	16.10	2.29	12.5	28.6	5.14	26	60
KNF226-040A	57.20	26.40	15.20	58.00	25.60	16.10	2.29	12.5	28.6	5.14	40	92
KNF226-060A	57.20	26.40	15.20	58.00	25.60	16.10	2.29	12.5	28.6	5.14	60	138
KNF226-075A	57.20	26.40	15.20	58.00	25.60	16.10	2.29	12.5	28.6	5.14	75	175
KNF226-090A	57.20	26.40	15.20	58.00	25.60	16.10	2.29	12.5	28.6	5.14	90	207
KNF225-026A	57.20	35.60	14.00	58.00	34.70	14.86	1.444	14.3	20.65	9.48	26	33
KNF225-040A	57.20	35.60	14.00	58.00	34.70	14.86	1.444	14.3	20.65	9.48	40	50
KNF225-060A	57.20	35.60	14.00	58.00	34.70	14.86	1.444	14.3	20.65	9.48	60	75
KNF225-075A	57.20	35.60	14.00	58.00	34.70	14.86	1.444	14.3	20.65	9.48	75	94
KNF225-090A	57.20	35.60	14.00	58.00	34.70	14.86	1.444	14.3	20.65	9.48	90	112
KNF250-026A-E18	62.00	32.60	18.00	63.10	31.37	19.27	2.646	14.37	38.023	7.73	26	60
KNF250-040A-E18	62.00	32.60	18.00	63.10	31.37	19.27	2.646	14.37	38.023	7.73	40	92
KNF250-060A-E18	62.00	32.60	18.00	63.10	31.37	19.27	2.646	14.37	38.023	7.73	60	138
KNF250-075A-E18	62.00	32.60	18.00	63.10	31.37	19.27	2.646	14.37	38.023	7.73	75	173
KNF250-090A-E18	62.00	32.60	18.00	63.10	31.37	19.27	2.646	14.37	38.023	7.73	90	207
KNF250-026A-E20	62.00	32.60	20.00	63.10	31.37	21.27	2.94	14.37	42.248	7.73	26	66
KNF250-040A-E20	62.00	32.60	20.00	63.10	31.37	21.27	2.94	14.37	42.248	7.73	40	102
KNF250-060A-E20	62.00	32.60	20.00	63.10	31.37	21.27	2.94	14.37	42.248	7.73	60	154
KNF250-075A-E20	62.00	32.60	20.00	63.10	31.37	21.27	2.94	14.37	42.248	7.73	75	192
KNF250-090A-E20	62.00	32.60	20.00	63.10	31.37	21.27	2.94	14.37	42.248	7.73	90	230
KNF250-026A	62.00	32.60	25.00	63.10	31.37	26.27	3.675	14.37	52.81	7.73	26	83
KNF250-040A	62.00	32.60	25.00	63.10	31.37	26.27	3.675	14.37	52.81	7.73	40	128
KNF250-060A	62.00	32.60	25.00	63.10	31.37	26.27	3.675	14.37	52.81	7.73	60	192
KNF250-075A	62.00	32.60	25.00	63.10	31.37	26.27	3.675	14.37	52.81	7.73	75	240
KNF250-090A	62.00	32.60	25.00	63.10	31.37	26.27	3.675	14.37	52.81	7.73	90	288
KNF268-026A	68.00	36.00	20.00	69.40	34.70	21.40	3.104	16.33	50.69	9.62	26	62
KNF268-040A	68.00	36.00	20.00	69.40	34.70	21.40	3.104	16.33	50.69	9.62	40	95
KNF268-060A	68.00	36.00	20.00	69.40	34.70	21.40	3.104	16.33	50.69	9.62	60	143
KNF268-075A	68.00	36.00	20.00	69.40	34.70	21.40	3.104	16.33	50.69	9.62	75	179
KNF268-090A	68.00	36.00	20.00	69.40	34.70	21.40	3.104	16.33	50.69	9.62	90	214
KNF300-026A	77.80	49.20	12.70	78.90	48.20	13.84	1.77	20	34.7	17.99	26	30
KNF300-040A	77.80	49.20	12.70	78.90	48.20	13.84	1.77	20	34.7	17.99	40	45
KNF300-060A	77.80	49.20	12.70	78.90	48.20	13.84	1.77	20	34.7	17.99	60	68
KNF300-075A	77.80	49.20	12.70	78.90	48.20	13.84	1.77	20	34.7	17.99	75	85
KNF300-090A	77.80	49.20	12.70	78.90	48.20	13.84	1.77	20	34.7	17.99	90	102
KNF301-026A	77.80	49.20	15.90	78.90	48.20	17.02	2.27	19.95	45.3	17.99	26	37
KNF301-040A	77.80	49.20	15.90	78.90	48.20	17.02	2.27	19.95	45.3	17.99	40	57
KNF301-060A	77.80	49.20	15.90	78.90	48.20	17.02	2.27	19.95	45.3	17.99	60	85
KNF301-075A	77.80	49.20	15.90	78.90	48.20	17.02	2.27	19.95	45.3	17.99	75	107
KNF301-090A	77.80	49.20	15.90	78.90	48.20	17.02	2.27	19.95	45.3	17.99	90	128
KNF290-026A	74.10	45.30	35.00	75.20	44.07	36.27	5.04	18.38	92.64	15.25	26	89
KNF290-040A	74.10	45.30	35.00	75.20	44.07	36.27	5.04	18.38	92.64	15.25	40	137
KNF290-060A	74.10	45.30	35.00	75.20	44.07	36.27	5.04	18.38	92.64	15.25	60	206
KNF290-075A	74.10	45.30	35.00	75.20	44.07	36.27	5.04	18.38	92.64	15.25	75	257
KNF290-090A	74.10	45.30	35.00	75.20	44.07	36.27	5.04	18.38	92.64	15.25	90	309
KNF401-026A	101.60	57.15	13.59	103.12	55.75	14.86	2.9716	24.271	72.122	24.413	26	40
KNF401-040A	101.60	57.15	13.59	103.12	55.75	14.86	2.9716	24.271	72.122	24.413	40	61
KNF401-060A	101.60	57.15	13.59	103.12	55.75	14.86	2.9716	24.271	72.122	24.413	60	92
KNF401-075A	101.60	57.15	13.59	103.12	55.75	14.86	2.9716	24.271	72.122	24.413	75	115
KNF401-090A	101.60	57.15	13.59	103.12	55.75	14.86	2.9716	24.271	72.122	24.413	90	139
KNF400-026A	101.60	57.15	16.51	103.12	55.75	17.78	3.5226	24.271	85.495	24.413	26	48
KNF400-040A	101.60	57.15	16.51	103.12	55.75	17.78	3.5226	24.271	85.495	24.413	40	75
KNF400-060A	101.60	57.15	16.51	103.12	55.75	17.78	3.5226	24.271	85.495	24.413	60	112
KNF400-075A	101.60	57.15	16.51	103.12	55.75	17.78	3.5226	24.271	85.495	24.413	75	137
KNF400-090A	101.60	57.15	16.51	103.12	55.75	17.78	3.5226	24.271	85.495	24.413	90	164
KNF520-026A	132.54	78.59	20.32	133.96	77.04	21.72	5.3471	32.428	173.4	46.612	26	54
KNF520-040A	132.54	78.59	20.32	133.96	77.04	21.72	5.3471	32.428	173.4	46.612	40	83
KNF520-060A	132.54	78.59	20.32	133.96	77.04	21.72	5.3471	32.428	173.4	46.612	60	124
KNF520-075A	132.54	78.59	20.32	133.96	77.04	21.72	5.3471	32.428	173.4	46.612	75	155
KNF520-090A	132.54	78.59	20.32	133.96	77.04	21.72	5.3471	32.428	173.4	46.612	90	187
KNF521-026A	132.54	78.59	25.40	133.96	77.04	26.80	6.71	32.429	217.58	46.612	26	68
KNF521-040A	132.54	78.59	25.40	133.96	77.04	26.80	6.71	32.429	217.58	46.612	40	104
KNF521-060A	132.54	78.59	25.40	133.96	77.04	26.80	6.71	32.429	217.58	46.612	60	156
KNF521-075A	132.54	78.59	25.40	133.96	77.04	26.80	6.71	32.429	217.58	46.612	75	195
KNF521-090A	132.54	78.59	25.40	133.96	77.04	26.80	6.71	32.429	217.58	46.612	90	234
KNF650-026A-E25.4	165.000	88.90	25.400	167.20	86.90	26.80	9.46	38.65	365.63	59.31	26	80
KNF650-040A-E25.4	165.000	88.90	25.400	167.20	86.90	26.80	9.46	38.65	365.63	59.31	40	123
KNF650-060A-E25.4	165.000	88.90	25.400	167.20	86.90	26.80	9.46	38.65	365.63	59.31	60	184
